High End HDI Board

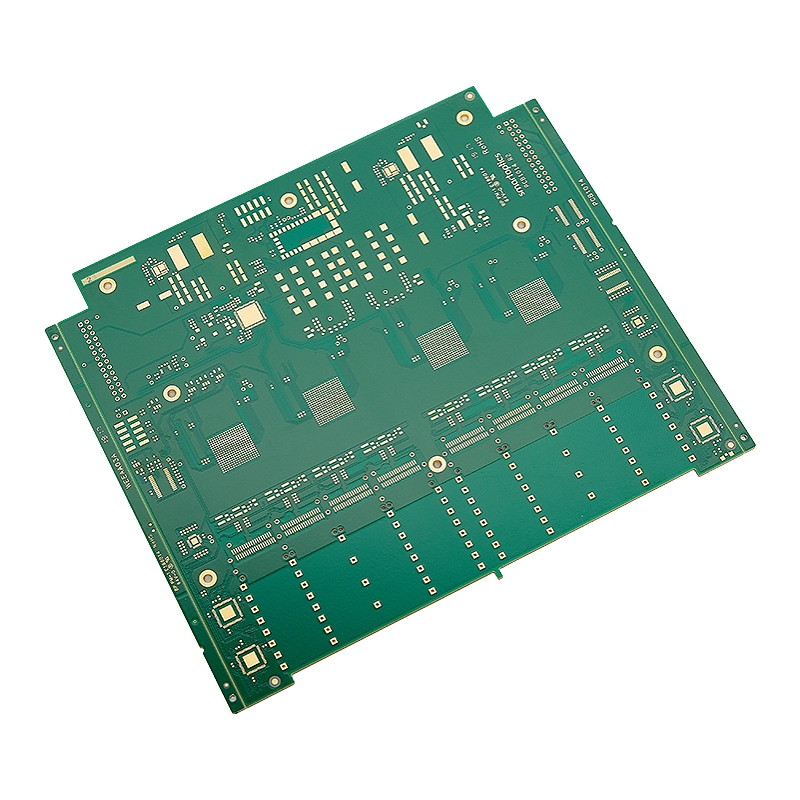

High End HDI Board
Product Model：3+10+3HD1
Product Description：
▪ Layers -- 16Layer
▪ Material -- PanasonicR-5775
▪ Thickness --2mm
▪ Inner copper -- HOZ
▪ Min line width/spacing -- 2/2mil
▪ Min Aperture --0.1mm
▪ Surface Treament- ENIG
▪ Application --Communication Equipmet
Previous：High End HDI Board
Next：High End HDI Board
