High Multilayer Board

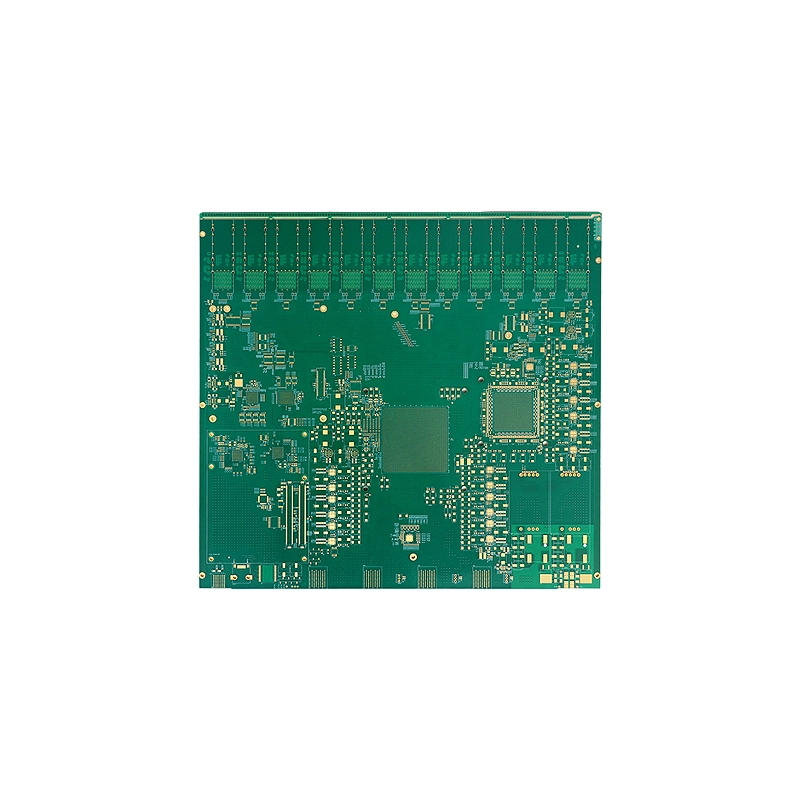

High Multilayer Board
Product Model：26L
Product Description：
Layers:26L
Matrerials:Tachyon 100G
Thickness:3.5±0.35mm
Inner copper:0.330Z
Min line width/space:0.112/0.05mm
Min aperture:0.225mm
Surface treatment:ENIG
Application: Switch
