Heavy Copper

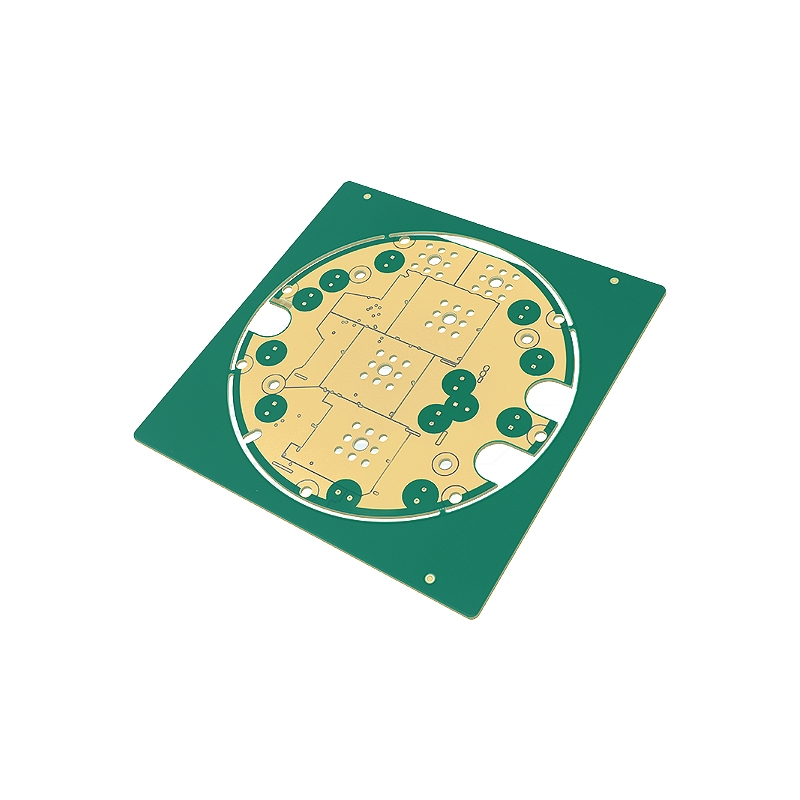

Heavy Copper
Product Model：10L
Product Description：.Industrial control systems
.Layer count: 10L
.Material: EM370(Z)
.Board thickness:2.48mm
.Copper thickness :4 oz(RTF)
.Min.LW/LS:0.433/0.137mm
.Min. Drill Size : 0.3mm
.Surface Finish:ENIG
Previous：Heavy Copper
Next：Heavy Copper
