High Multilayer Board

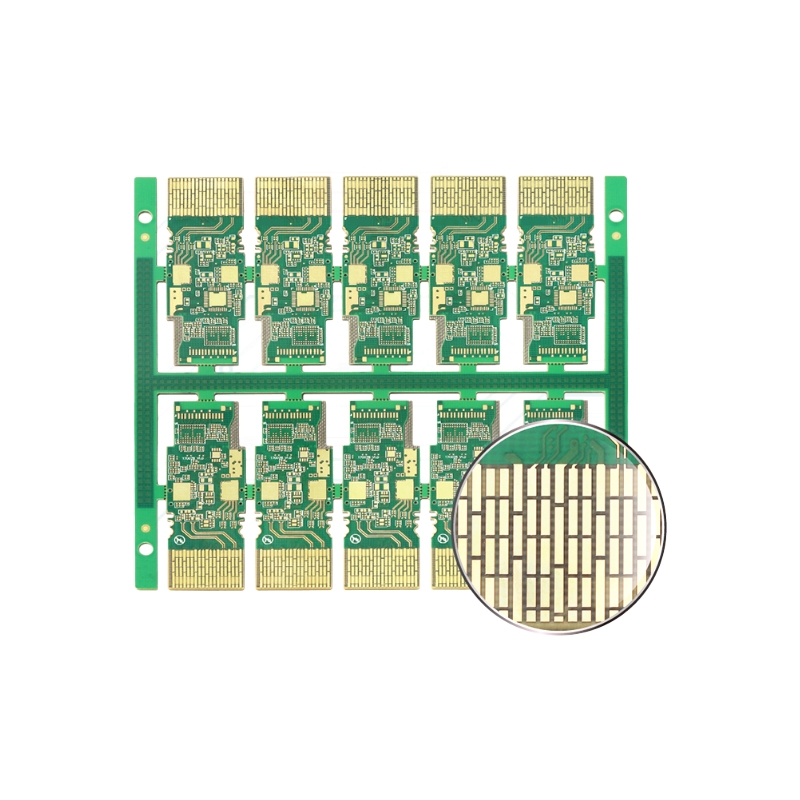

High Multilayer Board

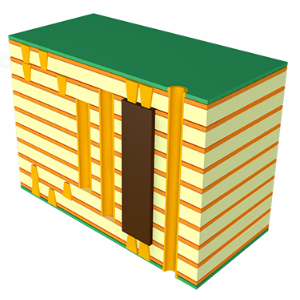

Product Model：10L
Product Description：
▪ Layers: 10L
▪ P/N: 400Gbps QSFP-DD
▪ Material: M6(R-5775)
▪ Thickness tolerance: goldfinger1.0±0.075mm
▪ Plug shape tolerance: ±0.05mm
▪ Surface treatment: ENEPIG+Hard gold finger
Previous：High End HDI Board
Related Products
-
Heavy Copper10L
10LHeavy Copper
.Layer count: 10L.Material: EM-827.Board thickness:4.85mm.Copper thickness on all layers:3 oz(RTF)·Min.LW/LS: 0.45/0.30mm·Min.Drill Size:0.25mm·Surface Finish:ENIG
Learn more > -
High End HDI Board12L Anylayer
12L AnylayerHigh End HDI Board
▪ Layers:12L ▪ Board thickness:0.8mm ▪ Material:EM-370 ▪ Min Width/Spacing:60/60um ▪ Surface treament:ENIG+OSP
Learn more > -
High End HDI Board3+10+3HD1
3+10+3HD1High End HDI Board
▪ Layers -- 16Layer ▪ Material -- PanasonicR-5775 ▪ Thickness --2mm ▪ Inner copper -- HOZ ▪ Min line width/spacing -- 2/2mil ▪ Min Aperture --0.1mm ▪ Surface Treament- ENIG ▪ Application --Communication Equipmet
Learn more > -
High Multilayer Board34L
34LHigh Multilayer Board
▪ Layers: 34L▪ Material: FR408HR▪ Thickness: 4.0mm▪ Inner/outer copper: 10Z▪ Surface treatment: ENIG
Learn more > -
High Multilayer Board26L
26LHigh Multilayer Board
Layers:26LMatrerials:Tachyon 100GThickness:3.5±0.35mmInner copper:0.330ZMin line width/space:0.112/0.05mmMin aperture:0.225mmSurface treatment:ENIGApplication: Switch
Learn more > -
High Multilayer Board10L
10LHigh Multilayer Board
▪ Layers: 10L▪ P/N: 400Gbps QSFP-DD▪ Material: M6(R-5775)▪ Thickness tolerance: goldfinger1.0±0.075mm▪ Plug shape tolerance: ±0.05mm▪ Surface treatment: ENEPIG+Hard gold finger
Learn more > -
Heavy Copper10L
10LHeavy Copper
.Layer count: 10L.Material:TU865.Board Thickness:3.5mm.Copper thickness:50Z-Min.LW/LS:2/2mm-Min.hole Size :0.7mm.Surface Finish:ENIG.Application field:Communication
Learn more > -
High End HDI Board2+20+2HDI
2+20+2HDIHigh End HDI Board
▪ Layers: 24L▪ Materials: FR-4(Tg180)VT-47▪ Thicknes: 2.59+/-0.26mm▪ Min line width/spacing: 3.5/5.0mil▪ Min aperture:0.25mm▪ Surface treament: ENIG
Learn more >
