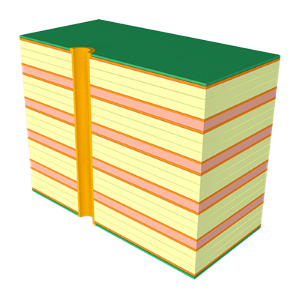

Heavy Copper
Product Model：10L
Product Description：.Layer count: 10L
.Material:TU865
.Board Thickness:3.5mm
.Copper thickness:50Z-Min
.LW/LS:2/2mm-Min
.hole Size :0.7mm
.Surface Finish:ENIG
.Application field:Communication
Previous：High Multilayer Board
Next：Heavy Copper
Related Products
-

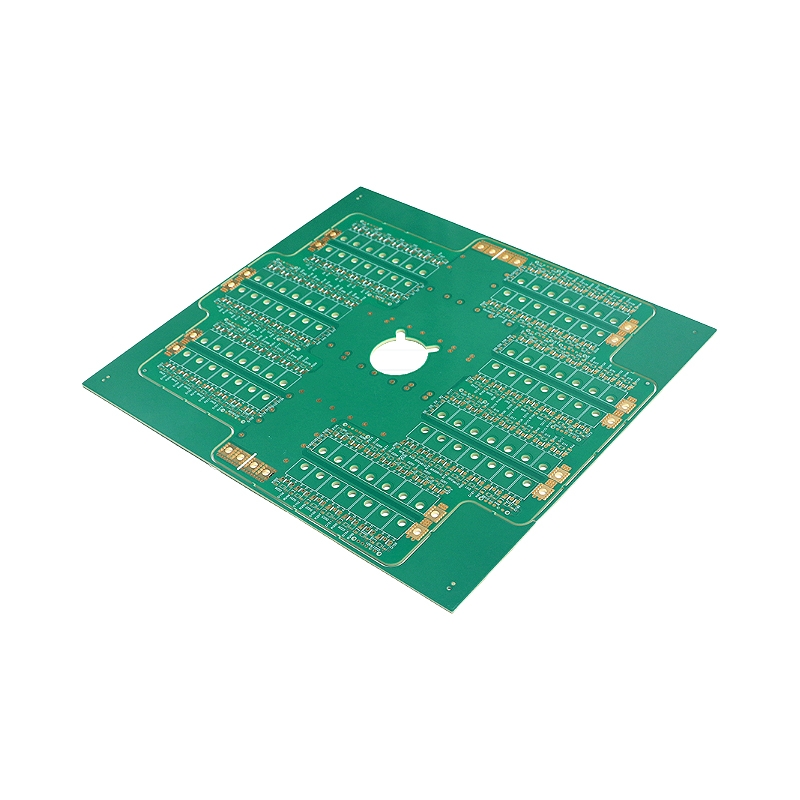

Heavy Copper10L
