Heavy Copper

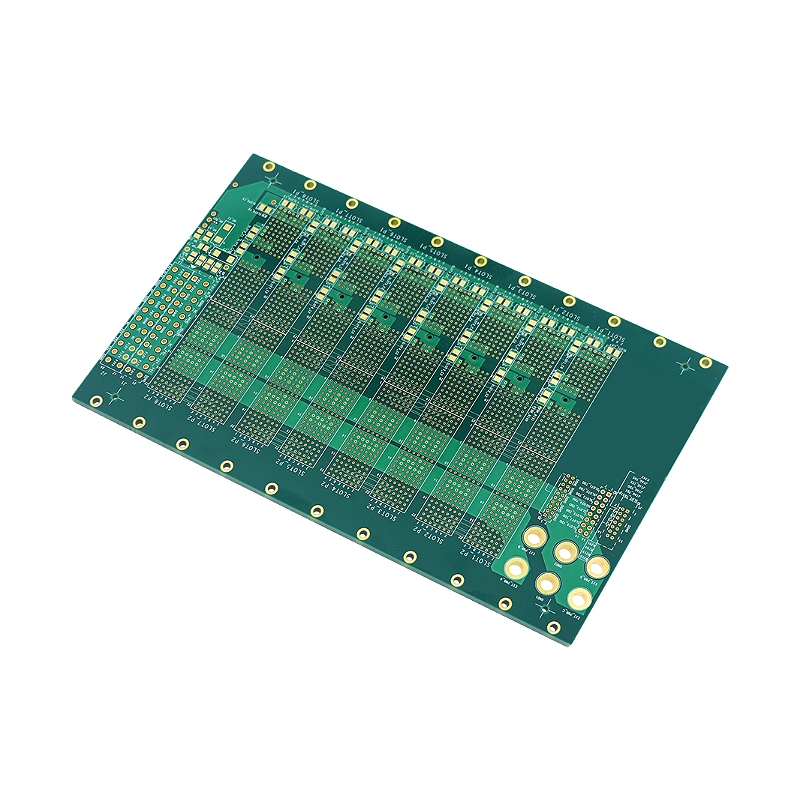

Heavy Copper
Product Model：10L
Product Description：
.Layer count: 10L
.Material: EM-827
.Board thickness:4.85mm
.Copper thickness on all layers:3 oz(RTF)
·Min.LW/LS: 0.45/0.30mm
·Min.Drill Size:0.25mm
·Surface Finish:ENIG
