High End HDI Board

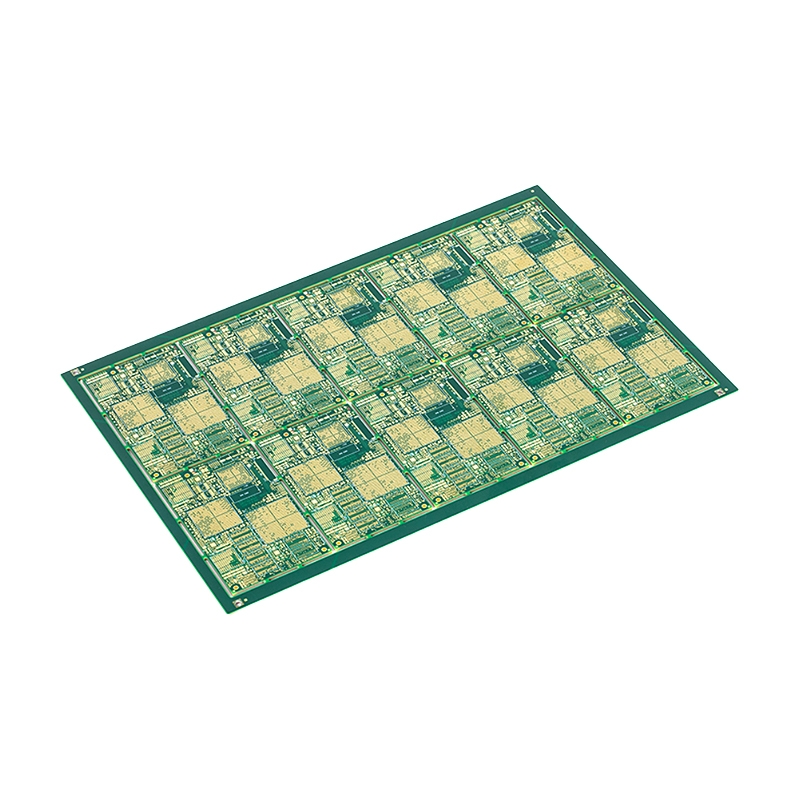

High End HDI Board

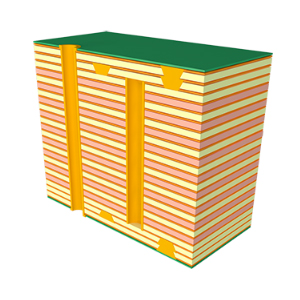

Product Model：2+20+2HDI
Product Description：
▪ Layers: 24L
▪ Materials: FR-4(Tg180)VT-47▪ Thicknes: 2.59+/-0.26mm
▪ Min line width/spacing: 3.5/5.0mil
▪ Min aperture:0.25mm
▪ Surface treament: ENIG
