GPU
GPU

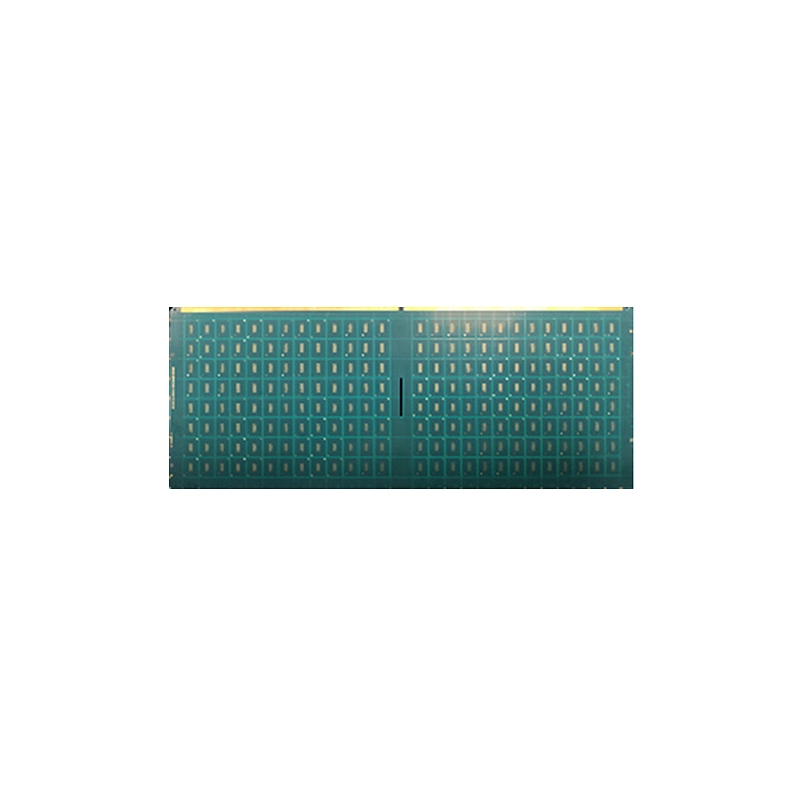

Product Model：12L 5+2+5
Product Description：
◆ Structure:12L,5+2+5
◆ Core: BT / thickness 0.8mm
◆ Bulid up : GX92/ thickness 25μm
