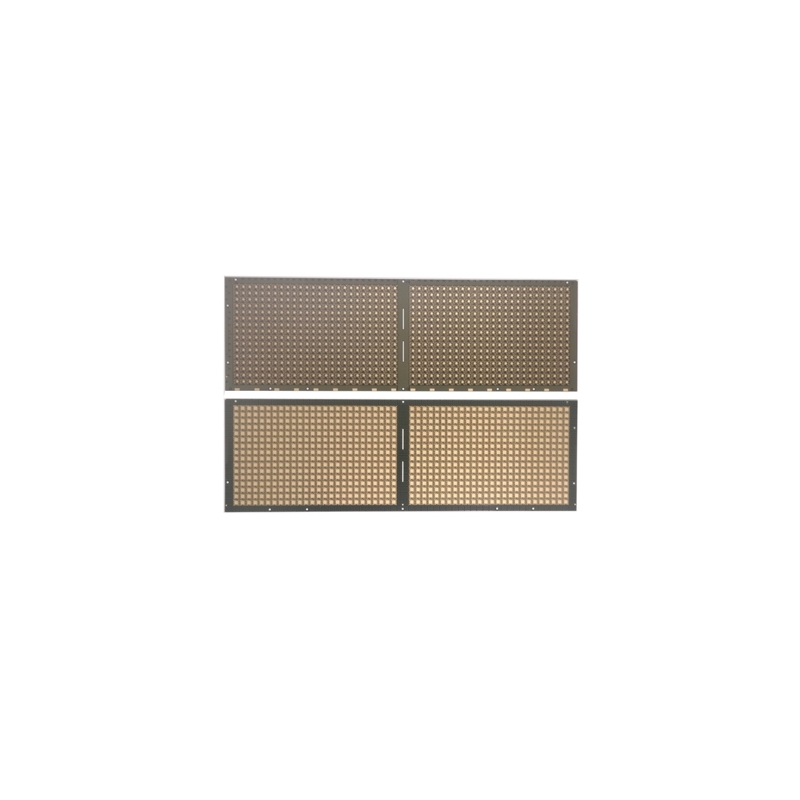

Product Model：4L 1+2+1
Product Description：
◆ Structure: 4L，1+2+1，Total thickness:180μm min;
◆ Layer alignment: blind via ring width 25μm，Adjacentlayer shift≤25μm，Random layer shift≤40μm
◆ MSAP process，trace width tolerance ±5μm ;
◆ Surface finish: Thin ENEPIG ( Ni thickness 0.3~0.5μm)
Previous：Touch Fingerprint
Related Products
-
Touch Fingerprint2L
2LTouch Fingerprint
◆ Structure: 2L，Substrate thickness tolerance±15μm;Mechanical Drilling，Filled Via with SM or resin;◆ Tenting process，L/S≥35/35μm;◆ AUS320/25±7μm，SM Flatness≤7um;◆ Surface finish: Soft Ni/Au +Etch-back
Learn more > -
AP/FCCSP6L 2+2+2
6L 2+2+2AP/FCCSP
◆ Structure : 6L, 2+2+2,Total thickness 400 μm, core thickness 150μm;Inner layer: 75μm laser dirlled“X” hole ,copper filled. Outer layer:60μmlaser blind via.◆ Fine line: inner layerMSAP process,L/S=15/15 μm.◆ AUS SR1/thickness 15+/-7μm，SRO=105μm，SM shift tolerance≤15...
Learn more > -
SSD2L
2LSSD
◆ Structure: 2L，Total thickness:100 μm min;Mechanical Drilling，Filled Via with SM;Laser Drilling，Filled Via with Copper, dimple≤5μm;◆ Tenting process，L/S≥35/35um;MSAP process,L/S≤25/25μm;◆ SM colour: Green or Black matte /thickness 20+/-7μm,SM Flatness≤7μm;◆ Surface fini...
Learn more > -
AP/FCCSP2L
2LAP/FCCSP
◆ Structure : 2L,Total thickness170 μm, core thickness 100μm;◆ MSAP process，L/S=20/20μm◆ 75μm laser dirlled “X” hole ，copper filled.Bonding finger Pitch: 95μm(50/40μm)BOL Pitch: 55μm(25/30μm)◆ Surface finish:Soft Ni/Au+OSP +Etch-back
Learn more > -
LPDDR3L
3LLPDDR
◆ Structure:3L Coreless, Total thickness:130μm;◆ MSAP process，BF Pitch/Width min /Space min :65/35/15μm;◆ Warpage≤2mm(before reflow);◆ Surface finish: AFOP(TOP:Ni/Au,BTM: OSP)
Learn more > -
RF4L 1+2+1
4L 1+2+1RF
◆ Structure: 4L，1+2+1，Total thickness:180μm min;◆ Layer alignment: blind via ring width 25μm，Adjacentlayer shift≤25μm，Random layer shift≤40μm◆ MSAP process，trace width tolerance ±5μm ;◆ Surface finish: Thin ENEPIG ( Ni thickness 0.3~0.5μm)
Learn more > -
FCBGA8L 3+2+3
8L 3+2+3FCBGA
·Layers -- 8L 3+2+3·Materials --MCL-E-705G+ABF GL102·Thickness --0.76mm·Size --50*50 mm·Inner-Copper -- 17um.Min line width/spacing --10/10um·Min aperture --50um·Surface treament一 IT+SOP
Learn more > -
GPU12L 5+2+5
12L 5+2+5GPU
◆ Structure:12L,5+2+5◆ Core: BT / thickness 0.8mm◆ Bulid up : GX92/ thickness 25μm
Learn more >
